Power Transformers

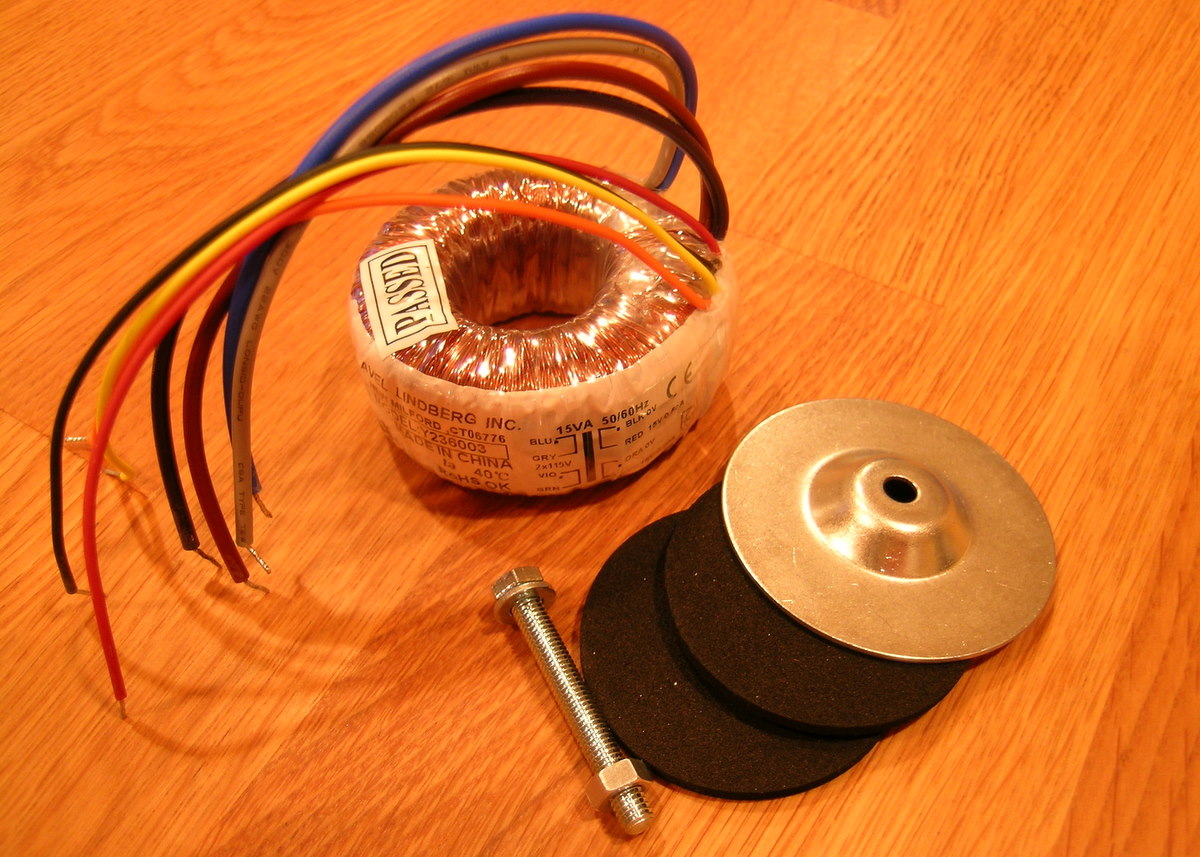

These power transformers have dual 115VAC primaries and dual secondaries. The dual primaries can be wired for 115VAC or 230VAC mains voltages. When used with our LCDPS or LCBPS power supplies, it will power any of our Digital, Line Stage, or Control kits.

  • The 9V (30VA) transformer is ideal for powering all of our Digital and Control modules.
  • The 15V (50VA) transformer is a perfect match for more than one of our Analog line stages and modules and provides added headroom.


  • *Please note that one transformer cannot power both a single (LCDPS or Placid) and a bipolar (LCBPS or Placid BP) at the same time, as it will result in a short circuit of the Ground channels.


    Load
    (VA)
    Secondary
    Voltage (V)
    Secondary
    Current (A)
    Regulation
    (Typical)
    Diameter
    (mm/inches)
    Height
    (mm/inches)
    Weight
    (Kg/Pounds)
    Temperature
    Rise (°C)
    309 + 90.8313.760 / 2.628 / 1.10.4 / .8826
    5015 + 151.6711.876 / 3.030 / 1.20.6 / 1.348


    Ordering Options

    9V+9V (30VA) Power Transformer $23.00 USD Out of stock
    15V+15V (50VA) Power Transformer $27.00 USD
