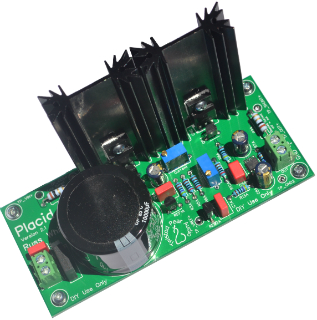

The Placid HD 2.1 - A Shunt Regulated Power Supply

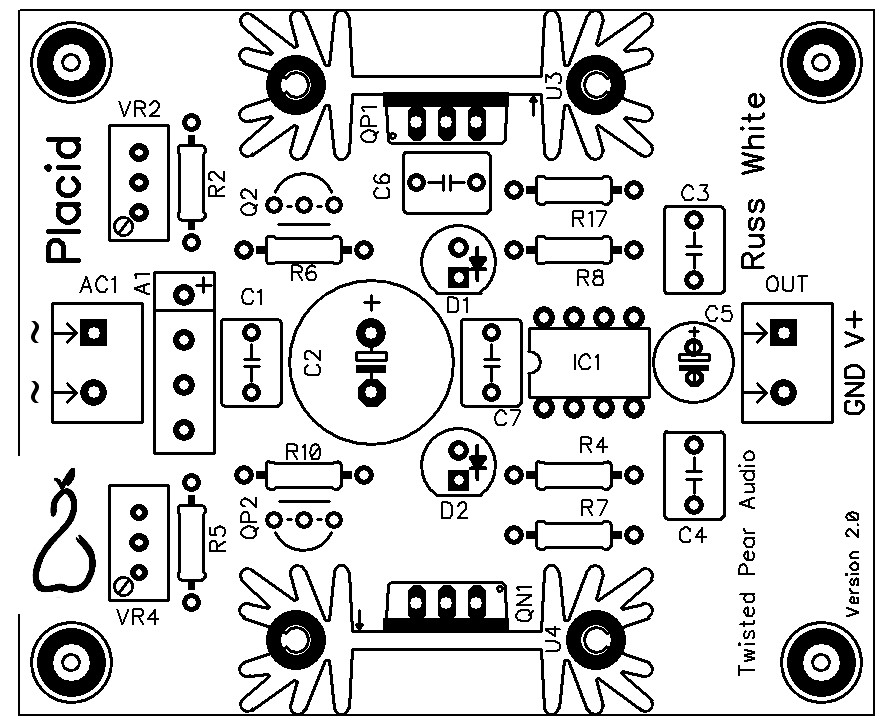

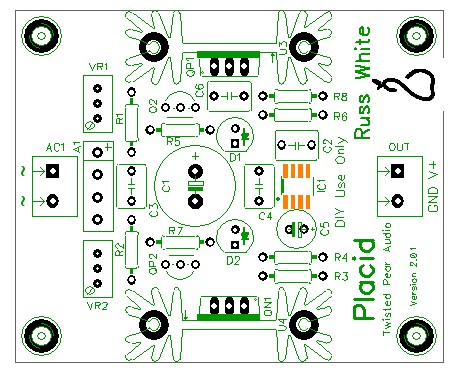

Layout (HD v2.1)
Schematic (HD v2.1)
Parts List (HD v2.1)
Manual
Board Outline
Older Versions
Placid HD Guide
by
Leon van Bommel
The Placid HD is single, very low noise, shunt regulated power supply. It is designed for powering the most demanding audio circuits.
Board Dimensions
Placid HS 2.1
4.5" x 2.0" (114.3mm x 50.8mm)
Ordering Options
Kits

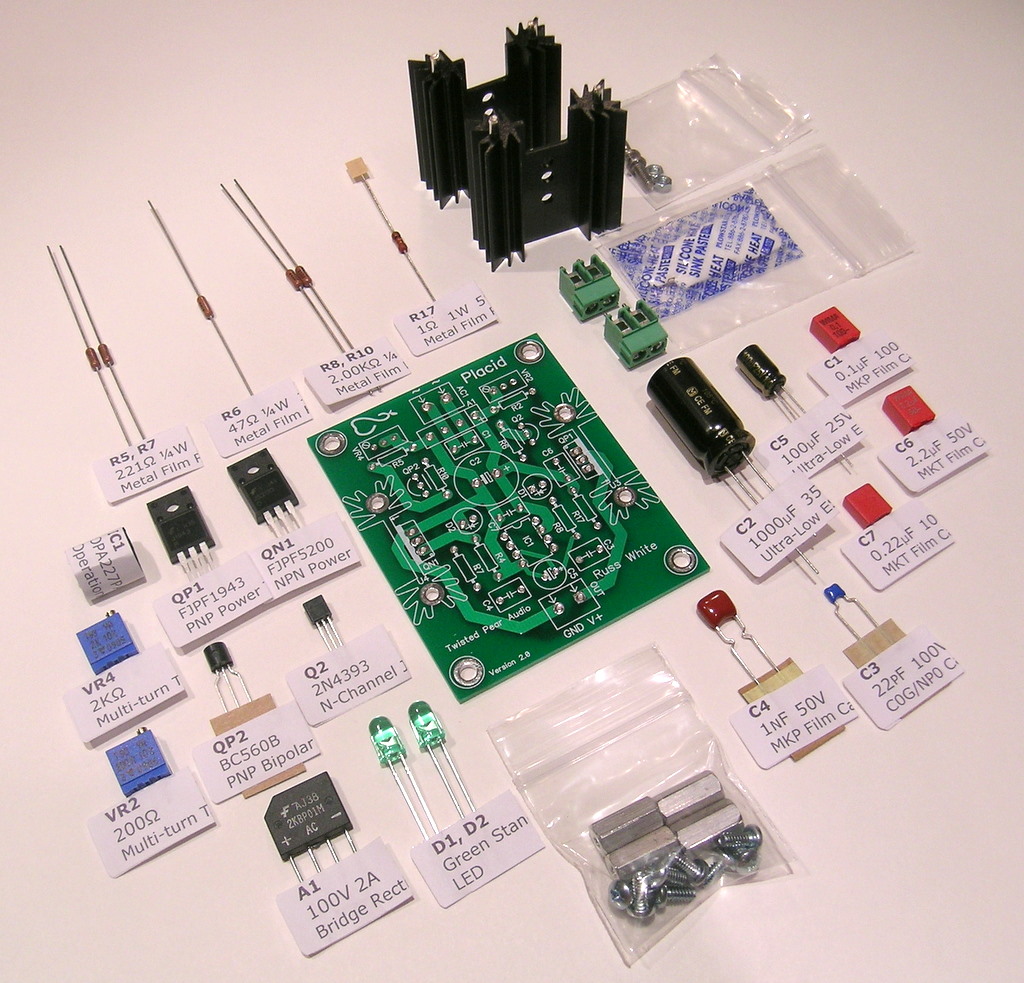

Placid HD 2.1 Power Supply Kit
$60.00 USD
PCBs
Placid HD 2.1 Single Power Supply Board
$16.50 USD
