The USB DAC/Receiver

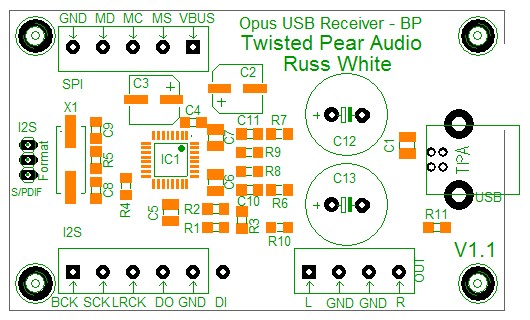

Layout    Schematic    Manual    BOM    Board Outline

The USB DAC/Receiver module is based on the Texas Instruments PCM2707 USB DAC chip (16-bit/48-kHz).

We utilize the standardized USB input and I2S or S/PDIF (selectable) output for feeding our other DAC modules. The DAC's single-ended analog outputs are also available for use, allowing this module to function as a standalone DAC as well. Power for the USB module is provided by the USB bus, no power supply is required.

Ordering Options
Individual Modules
USB Receiver Module (Assembled and Tested) $60.00 USD Out of stock
USB Receiver Board (no parts) $14.00 USD Out of stock
Please see the Opus DAC and COD DAC pages for Combination packages with the USB Receiver
