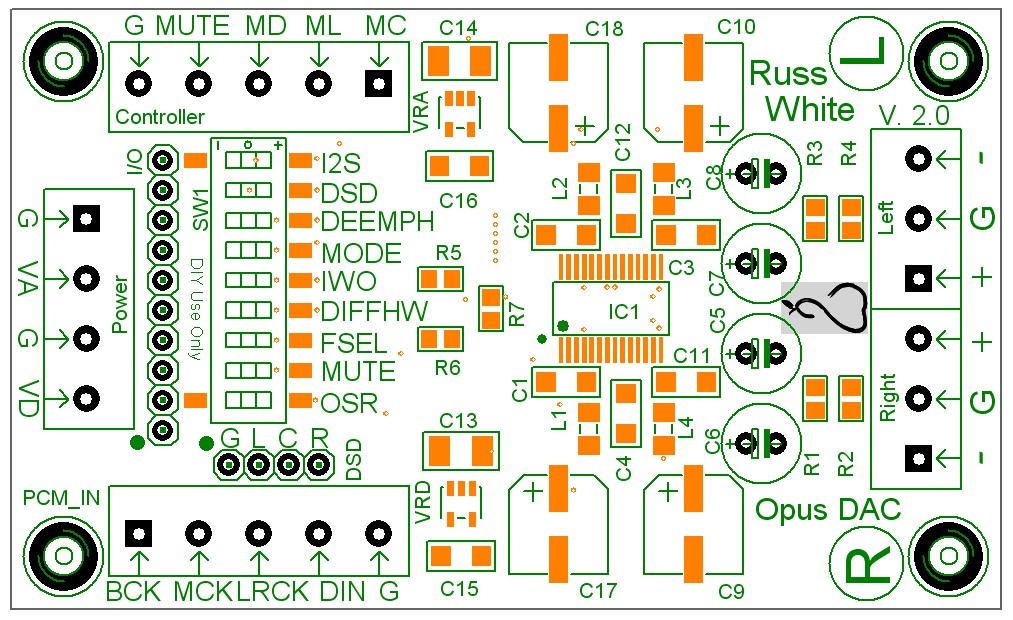

Layout Schematic Manual (1.0) Manual (2.0) Parts List

The Opus DAC module is based around the Wolfson's top of-the-line WM8741 DAC chip. It offers I²S and DSD inputs, stereo balanced output, hardware control of DAC options via jumpers, as well as a header for optional software control. The DAC board can also be configured to allow the WM8741 to operate in dual-mono mode (see datasheet for more information).

Separate analog and digital power sections feature National Semiconductor low-drop out (LDO) regulators.

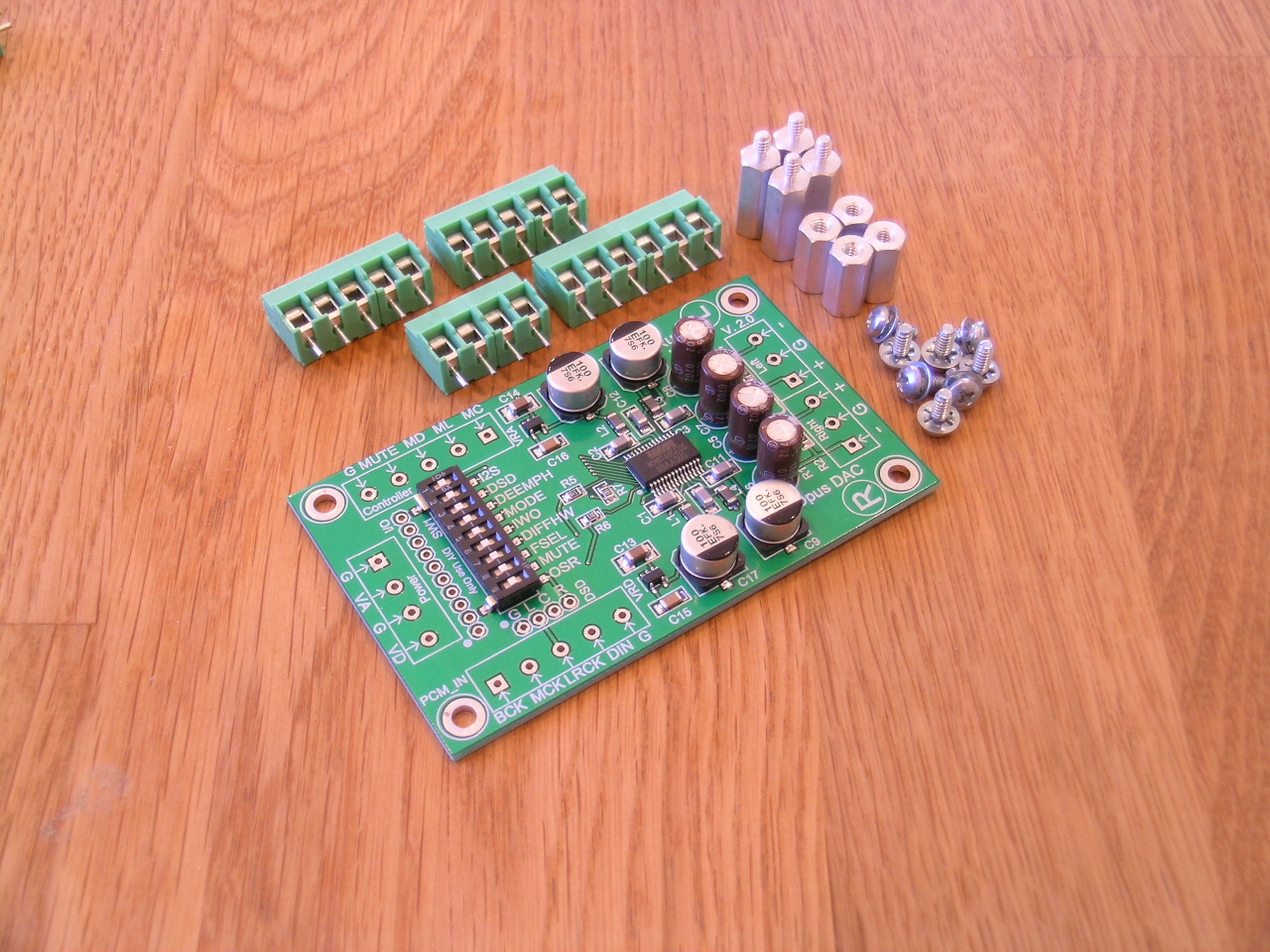

Power supply electrolytic capacitors are Vishay/OSCON (not pictured), output electrolytics capacitors are Elna SilmikII, and resistors are Susumu 0.1% thin film. Please note that the terminal blocks and output capacitors come uninstalled to allow for more flexibility (direct wiring, other output capacitors, etc).

DIYAudio development thread

HeadFi Discussion thread (unsponsored)

Ordering Options
Individual Modules
Opus DAC Module (Assembled and Tested)	$75.00 USD
Complete Kits
Opus DAC Kit (Unassembled)	$55.00 USD
PCBs
Opus DAC Board (no parts)	$14.00 USD
Module Combinations
Opus DAC + S/PDIF Receiver Combo [1] DAC Module (Assembled and Tested) [1] S/PDIF (WM8804) Receiver Module (Assembled and Tested) [1] Low-Current Dual Power Supply *Kit*	$175.00 USD
Opus Dual-Mono DAC + S/PDIF Receiver Combo [2] DAC Modules (Assembled and Tested) [1] S/PDIF (WM8804) Receiver Module (Assembled and Tested) [1] Low-Current Dual Power Supply *Kit*	$240.00 USD
Opus DAC + USB Receiver Combo [1] DAC Module (Assembled and Tested) [1] USB Receiver Module (Assembled and Tested) [1] Low-Current Dual Power Supply *Kit*	$175.00 USD
Opus Dual-Mono DAC + USB Receiver Combo [2] DAC Module (Assembled and Tested) [1] USB Receiver Module (Assembled and Tested) [1] Low-Current Dual Power Supply *Kit*	$240.00 USD
