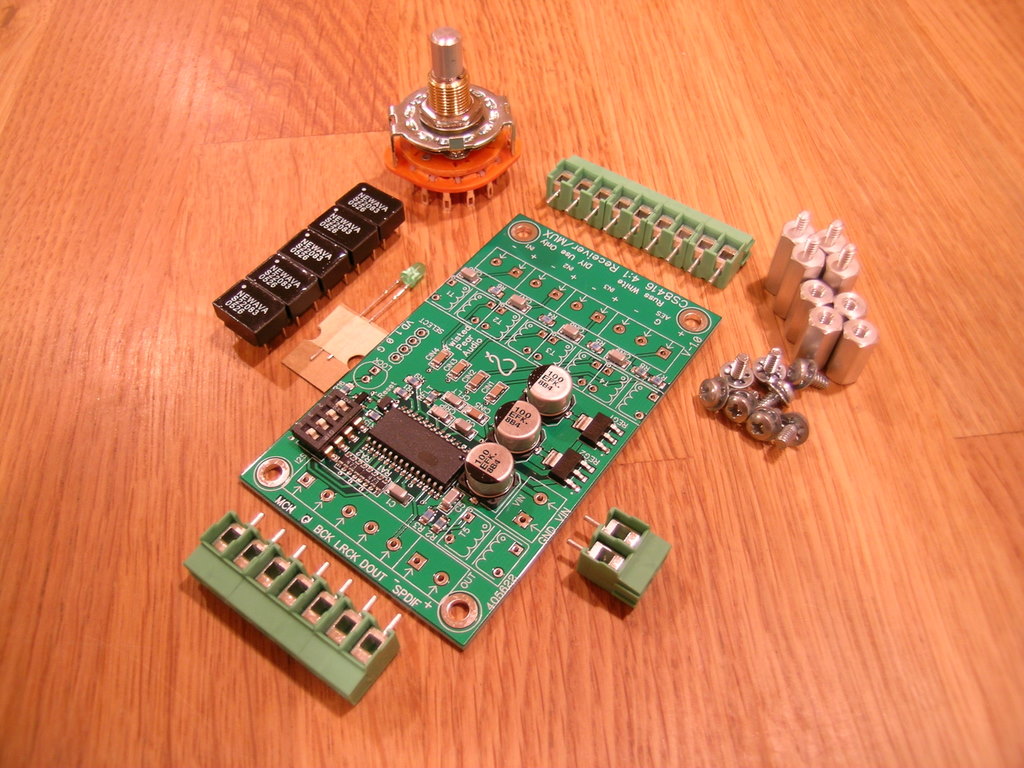

The CS8416 4:1 S/PDIF Receiver/MUX module is based around the Cirrus Logic CS8416 S/PDIF receiver chip.

This module provides a four transformer-coupled S/PDIF inputs (one of which optionally supports balanced AES), a transformer-coupled S/PDIF output, and an I²S output.

A four-pin header controls input selection with either a simple mechanical switch (included) or digitally with simple logic or a microcontroller (our Audio Controller 1 will provide this functionality).

This module requires a 5-12VDC power supply, such as our LCDPS.
