The OTTO-II 2:1 Digital Switch Module



The OTTO-II Digital Switching module is a simple 4-channel 2:1 switch which allows you to connect and switch between two digital data lines (I2S, DSD, S/PDIF, etc) to a single digital input out output. Typically it wil be used to select between two digital sources and a single DAC, but could also be used to, say, select a DAC from a single digital source.

Switching is triggered digitally, or by using a simple switch (not included in the kit). Simply connect the S pad to V+ or GND. The OE connection allows the entire switch to be enabled or disabled, but it will typically be tied to GND (enabled). DC power for the module can be anything from 4 to 5.5V.

All channels can optionally use direct wiring, terminal blocks (included), 0.1" headers (not included), or U.FL coaxial connectors (available below).

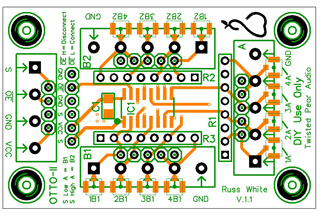

U.FL connectors can be pre-mounted for an additional $1 each. Select the configuration required below (consult board image above).


Ordering Options
Kits
OTTO-II 2:1 Digital Switch Kit $30.00 USD
Options
4-Pack of Gold Hirose U.FL Connectors (unmounted) $6.00 USD
4 Gold Hirose U.FL Connectors mounted on A (common) $10.00 USD
4 Gold Hirose U.FL Connectors mounted on B1 $10.00 USD
4 Gold Hirose U.FL Connectors mounted on B2 $10.00 USD
